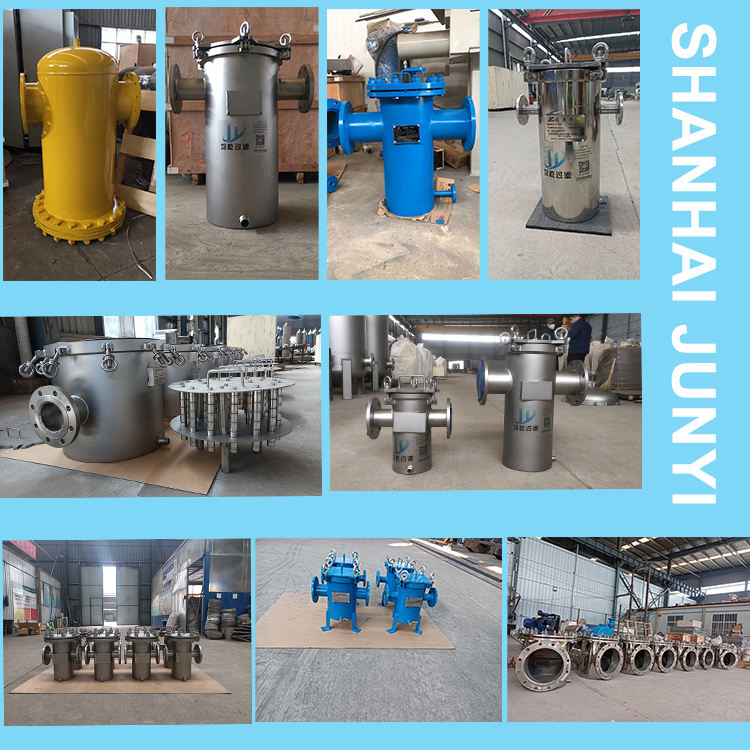

Stainless Steel Basket Filter
Basket Filter1. This kind of filter is an ind

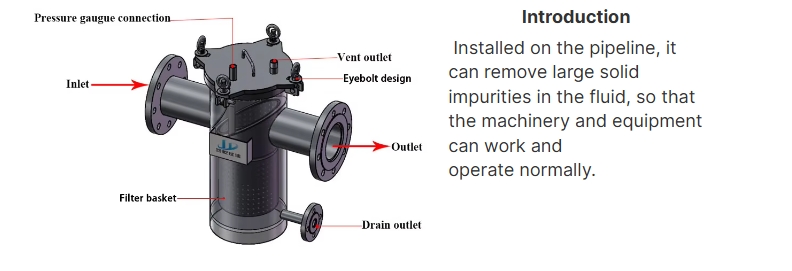

Basket Filter
1. This kind of filter is an indispensable device for pipeline series to convey medium, and it is usually installed in the side of pressure reducing valve, relief valve, level control valve or the inlet of other equipments.
2. It is used to filter out the impurities in the medium to guarantee the normal use of the valve and the equipment.
3. This kind of filter is with advanced structure, small resistance and convenient pollution discharge.
| Model | Inlet and outet
caliber DN |
L(mm) | H(mm) | H1(mm) | D0(mm) | Sewage outlet |
| JSY---LSP25 | 25 | 220 | 260 | 160 | Φ130 | 1/2" |
| JSY---LSP32 | 32 | 220 | 270 | 160 | Φ130 | 1/2" |
| JSY---LSP40 | 40 | 280 | 300 | 170 | Φ150 | 1/2" |
| JSY---LSP50 | 50 | 280 | 300 | 170 | Φ150 | 3/4" |
| JSY---LSP65 | 65 | 300 | 360 | 210 | Φ150 | 3/4" |
| JSY---LSP80 | 80 | 350 | 400 | 250 | Φ200 | 3/4" |
| JSY---LSP100 | 100 | 400 | 470 | 300 | Φ200 | 3/4" |
| JSY---LSP125 | 125 | 480 | 550 | 360 | Φ250 | 1" |
| JSY---LSP150 | 150 | 500 | 630 | 420 | Φ250 | 1" |
| JSY---LSP200 | 200 | 560 | 780 | 530 | Φ300 | 1" |
| JSY---LSP250 | 250 | 660 | 930 | 640 | Φ400 | 1" |
| JSY---LSP300 | 300 | 750 | 1200 | 840 | Φ450 | 1" |
| JSY---LSP400 | 400 | 800 | 1500 | 950 | Φ500 | 1" |
? Chemical industry: for handling chemicals, solvents, and other liquid materials
? Food industry: for handling food, beverages and other related products
? Oil and Gas Industry: For handling oil, gas and other products
? Paper industry: for processing pulp, printing ink and other materials
